4-Digit 7-Segment Display
A 4-digit 7-segment display combines four numeric displays and relies on fast multiplexing so the eye sees all digits at once.
Part images
What it is
A 4-digit 7-segment display combines four numeric displays and relies on fast multiplexing so the eye sees all digits at once.
How students use it
Students use it for clocks, timers, counters, and numeric readouts. Code cycles through digits quickly, enabling one digit at a time.
Pins and power

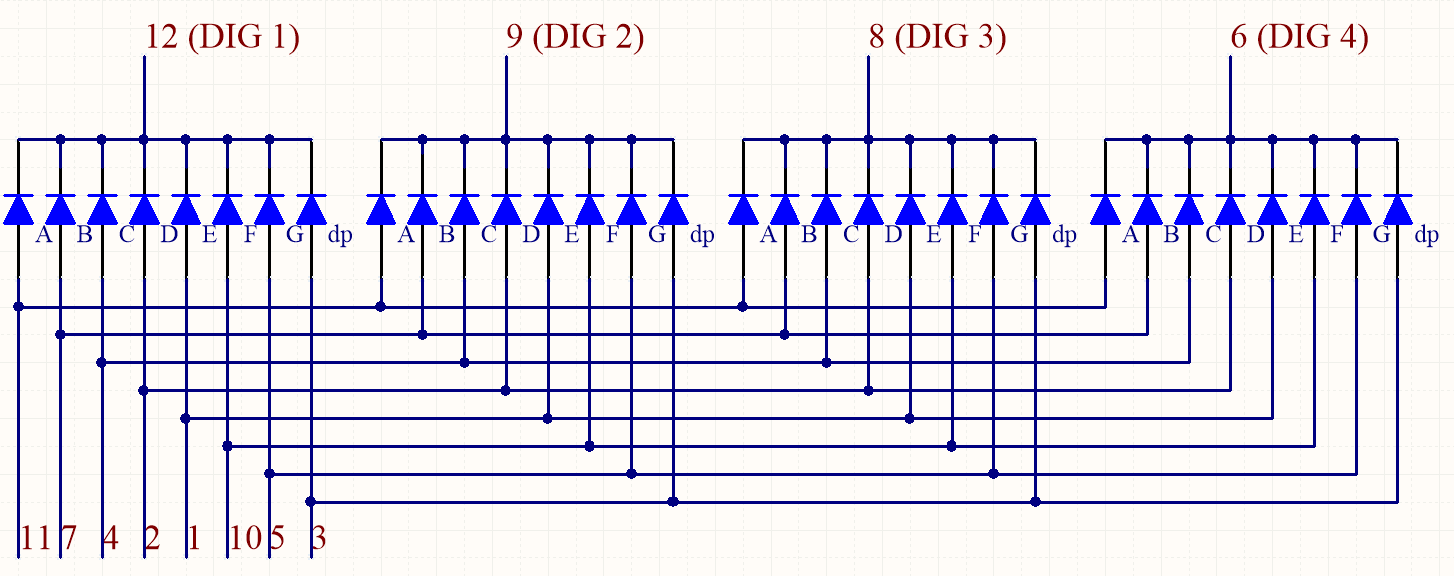

Shared segment lines plus digit-select lines; use the SunFounder schematic before wiring.
Each segment path needs current limiting. Multiplexed displays can still draw meaningful total current.
SunFounder explains visual persistence: each digit is lit briefly in sequence, typically cycling quickly enough that all four digits appear continuously lit.
Voltage and safety
Brightness depends on scan timing, resistors, and current limits. Do not compensate for dimness by exceeding safe current.
Multiplexing errors can leave too many segments on continuously and increase current draw.
Module internals
Four 7-segment LED digits in one package.
Datasheet notes
SunFounder provides schematic/reference diagrams but not a manufacturer part number. Verify the common type and pinout against markings before using a datasheet.
Common libraries
No dedicated library is required; lessons usually combine digit scanning with GPIO or 74HC595 output.
Common mistakes
Scanning too slowly, enabling two digits at once, using the wrong common type, mixing segment order, and forgetting to blank a digit while changing segment data.
