A transistor is a semiconductor part that lets a small control signal influence a larger current path. In beginner Pico projects it is usually used as an electronic switch.
Part images
What it is
A transistor is a semiconductor part that lets a small control signal influence a larger current path. In beginner Pico projects it is usually used as an electronic switch.
How students use it
Use a transistor when the Pico should control a load that needs more current than a GPIO pin can safely provide, such as a small motor, relay coil, or buzzer circuit.
Pins and power

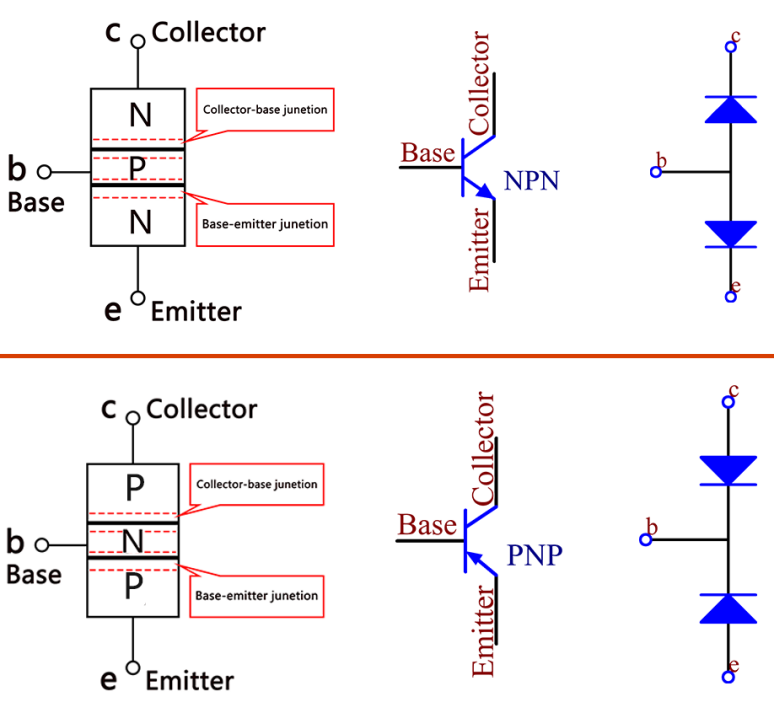

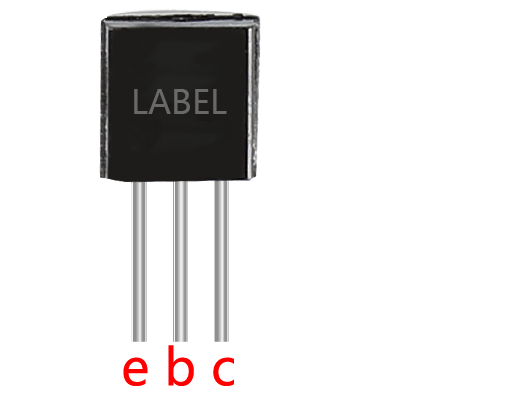

B, C, E: base, collector, emitter. Pin order depends on the exact part package.
The Pico drives the base through a resistor; the load uses its own suitable supply path.
SunFounder notes that S8050 is NPN and S8550 is PNP. Check the printed label carefully because the packages look similar.
Voltage and safety
The Pico GPIO controls only the base signal. Do not drive a load directly from GPIO; keep load current out of the Pico pin.
Use the right transistor type and orientation. A reversed transistor or missing base resistor can make the circuit fail or overheat.
Module internals
Main component: S8050 NPN transistor and S8550 PNP transistor are identified in the SunFounder component page.
A transistor switch normally needs a base resistor. Inductive loads such as motors and relays also need flyback protection handled by the circuit design.
Datasheet notes
Check the exact part marking before using a datasheet. Important values include maximum collector current, voltage ratings, gain, and package pin order.
Common mistakes
Swapping collector and emitter, confusing S8050 and S8550, forgetting the shared ground, skipping the base resistor, and expecting a GPIO pin to power the load.
